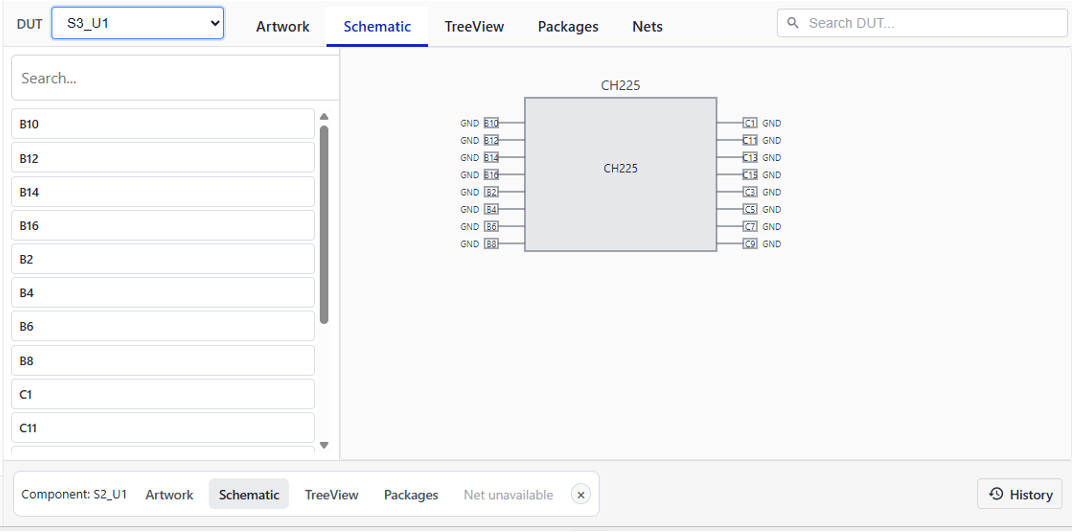

Schematic Tab

The Schematic view presents device symbols with full pin naming and mapped nets.

Users can search for components and nets in a variety of ways.
